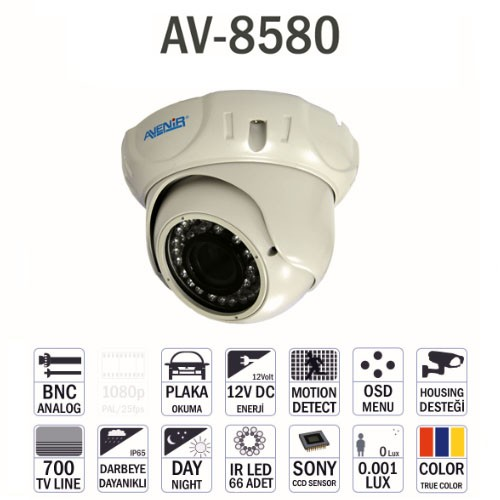

True Day Night 650TVL Varifocal IR Dome Camera
*1/3ÂfÂf SONY 700 TVL Super Had CCD Dome Camera
*Ultra High Resolution:650tvl Lines
*3D-DNR,Auto WDR
*Mini Illumination:0.003lux/F1.2(Slow shutter on)
*OSD,Auto Day&night
*Sense UP,Brightness,AGC
*HLC, AWB,freeze,Mirror
*Motion Dection,Privacy Zone
*12V DC
Adjustable
| Model | AV-8580 |
| Image sensor | 1/3ÂfÂf SONY ICX639/638BK+RJ10 Hitachi DSP (Super HAD II) |
| Signal system | PAL/NTSC |
| Effective Pixel | PAL: 811(H)Â~508(V); NTSC: 795(H)Â~596(V) |
| Resolution | H.Resolution: 700 Tvlines (B/W):650TVL |
| Min.illumination | 0.5Lux/F1.2; 0.001Lux/F1.2 (Slow Shutter) |
| Video Input | 0.8-1.5Vp-p (adjustable),75 Ohm |
| OSD Functions | Control mode
OSD control |
| Dynamic Range | Digtal WDR (120dB) |
| 3D-NR | 0-5 |
| Effect | mirror/horizontal/vertical/Rotate |
| LCD/CRT | OPTION |
| Digital Zoom | 10X |
| Shutter speed | 1/50`1/100000 |
| White Balance | AWB/ATW/ MANUAL /PUSH Selectable |
| AGC | Adjustable(off/12DB/24DB/36DB j |
| Brightness | 0-50 |
| HLC | 0-60 |
| Privacy Masking | 8 zones |
| Gamma |
| Motion detection | Auto tracking/Zone AutoTracking |
| Lens | 2.8-12mm lens |
| LEDS | 66LEDS |
| Sync. Mode | Internal V |
| S/N Ratio | More than 50dB |
| Iris control | Manual |
| Power Consumption | 4W(Max.) |
| Operating Temperature | -10Â~+50Â RH90% MAX |
| Weight | 0.8KG |
