16 Kanal NVR Kayıt Cihazı

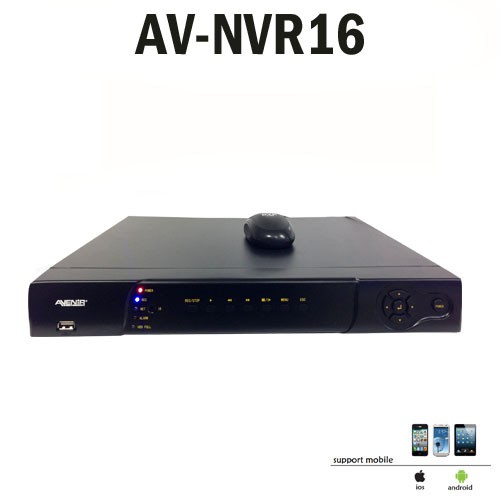

AV-NVR16

System

Operating System

Embedded LINUX

Video & Audio

IP Camera Input

16 channel

Two-way Talk

1 channel Input, 1 channel Output, BNC

Display

Interface

1 HDMI, 1 VGA, 1 BNC

Resolution

800*600;1024*768;1280*1024;1440*900;1920*1080

Display Split

1/4/9/16

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Compression

H.264(High Profile@Level4.2)/ MPEG-4

Resolution

5MP(2560×1920) / 3MP(2048×1536) / 1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480)

Record Rate

Max 8CH@1080P or 16CH@720P or 16CH@D1

Record Mode

Manual, Schedule(Regular(Continuous), MD, Alarm), Stop

Record Interval

1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection & Alarm

Trigger Events

Recording,Alarm,Video Push,Email, Buzzer

Video Detection

Motion Detection?Video Loss?HDD Loss

Alarm Input

8 channel

Relay Output

3 channel

Playback & Backup

Sync Playback

1/4/8

Search Mode

Time/Date, Alarm, MD & Exact search (accurate to second)

Playback Functions

Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

Backup Mode

USB Device / Network

Network

Ethemet

RJ-45 port (10/100M)

Network Functions

HTTP, IPv4/IPv6, TCP/IP, UPNP, DHCP, DNS, PPPOE, DDNS

Max.User Access

20 users

Mobile Phone

IPhone, IPad, Android

Storage

Internal HDD

2 SATA ports,  up to 4TB

Auxiliary Interface

USB Interface

3 ports (1 Rear), USB2.0

RS232

Yes

RS485

1 port, For PTZ control

General

Power Supply

NVR:DC12V/4A

Power Consumption

20W(without HDD)

Working Environment

-10 ~+55°C / 10~90%RH / 86~106kpa

Dimension(W*D*H)

1U,375x276x51 (mm)

Weight

1.5-2.0kg(without HDD)
